High-Performance Mixers
- Reversible / Pan / Twin-Shaft options for homogenous mixing
- High-torque drive systems for abrasive aggregates
- Wear-resistant internal liners for prolonged operational life
Advanced Control System

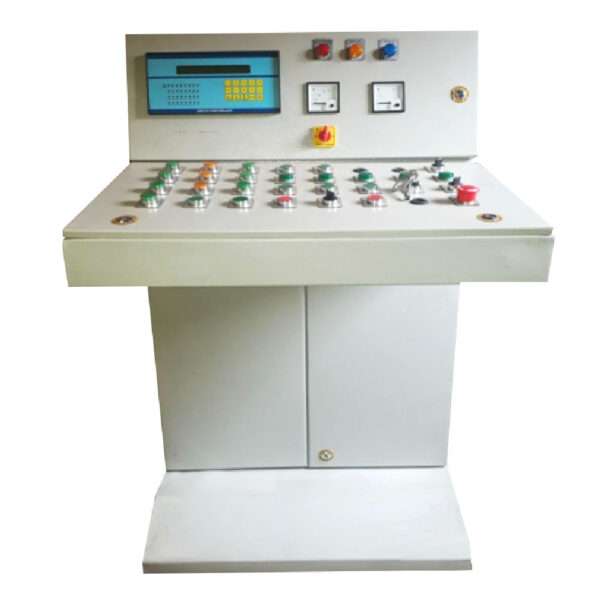

- Pre-wired PLC-based automation panel
- Precision electronic load cell batching
- SCADA compatible with cloud monitoring
- Auto & manual modes with rapid fault diagnostics
Rapid Relocation
- Integrated single-chassis modular construction
- Tow-behind design for highway transportation
- Zero foundation requirements (install on compacted ground)
- Plug-and-play quick-connect cabling
Heavy-Duty Structural Design
- Compact footprint maximizing site space utilization
- In-line aggregate bins with pneumatic gates
- Built-in water tank and admixture dosing units
- Vibration isolation mounts for stable operation
| Model | JH-15 | JH-25 | JH-30 | JH-45 |
|---|---|---|---|---|
| Output batch Capacity in mixer for reversible/pan type | 400 L / 275 L | 500 L / 400 L | 600 L / 500 L | 900 L / 750 L |
| Capacity per hour | 15 | 25 | 30 | 45 |
| Weighing System Type | Electronic Load Cell | Electronic Load Cell | Electronic Load Cell | Electronic Load Cell |
| Mixer HP | 7.5/15 | 10/20 | 15/30 | 20/45 |
| Belt conveyor | 5/5 | 7.5/7.5 | 10/10 | 15/15 |
| Water Pump HP | 1, 0.5 | 1, 1 | 2, 1 | 2, 2 |
| Total HP | 25/32.5 | 30/40 | 40/50 | 50/65 |
Note:- Due to continuous improvement in design, the above specifications are subject to change.
| Content |
A Mobile Concrete Batching Plant is the ultimate solution for construction projects that demand agility without compromising on production quality. Unlike stationary plants, these systems are engineered on a robust single chassis, making them highly portable and easily towable between project sites. Our portable batching plants feature a modular, pre-wired, and pre-plumbed architecture. This ensures rapid relocation and minimal setup time. With zero foundation requirements, contractors can deploy the plant on flat, compacted ground, drastically reducing civil works costs and commissioning delays. Equipped with state-of-the-art PLC-based automation, the mobile plant guarantees precise material dosing using electronic load cells. The in-line aggregate storage bins, cement weigh hoppers, and moisture compensation sensors work in unison to deliver highly accurate, homogenous concrete mixes—whether for ready-mix operations, road construction, or remote infrastructure projects. Despite their compact footprint, our Mobile Concrete Batching Plants offer industrial-grade output. High-torque Reversible, Pan, or Twin-Shaft mixers ensure rapid mixing cycles while minimizing wear and tear. The integration of advanced SCADA systems allows operators to monitor production metrics in real-time, ensuring strict adherence to mix designs and minimizing material wastage. Embrace maximum flexibility and unparalleled ROI with our Mobile Concrete Batching Plants. They are the definitive choice for modern contractors who need transient, high-performance concrete production on demand. |
| Features |
|
| Fuel Type | Diesel |
| Year | 2024 |
