Advanced Mixing Technology
- Reversible / Pan Type Mixers for homogenous blending
- High-shear mixing action for consistent concrete grades
- Hardened wear plates ensuring long service life
Automated Control System

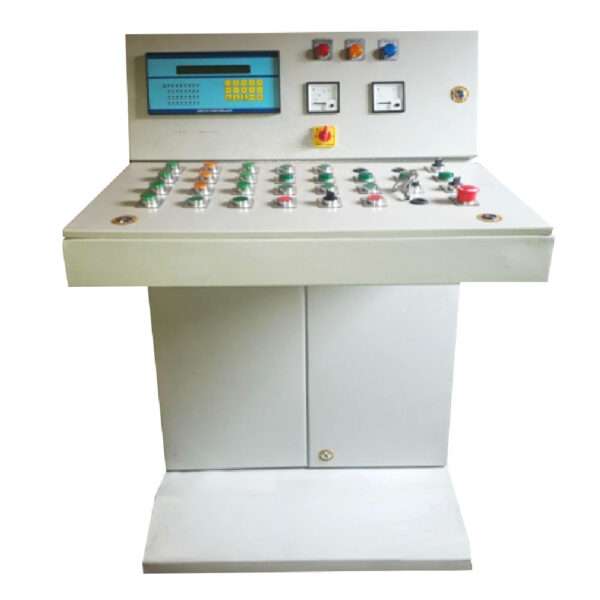

- SCADA/PLC Based Control Panel for fully automated batching
- Automated load cells for high-precision aggregate weighing
- Gate Inching Facility ensuring exact material dosing
- Real-time moisture sensors and auto/manual operations
Operational Efficiency
- Robust, steady structure supporting high-volume production
- Single Weighing Belt optimizing cycle times
- Low energy consumption and reduced maintenance costs
- Modular design for rapid erection and easy mobility
Comprehensive Supply
- Multi-compartment inline bins for aggregate storage
- Weighing Bin integrated with high-capacity Belt Conveyor
- Cement Screw Conveyor and calibrated cement weighing hopper
- Pneumatic compressor and precise water dosing systems
| Model | JH-15 | JH-25 | JH-30 | JH-45 |
|---|---|---|---|---|
| Output batch Capacity in mixer for reversible/pan type | 400 L / 275 L | 500 L / 400 L | 600 L / 500 L | 900 L / 750 L |
| Capacity per hour | 15 | 25 | 30 | 45 |
| Weighing System Type | Electronic Load Cell | Electronic Load Cell | Electronic Load Cell | Electronic Load Cell |
| Mixer HP | 7.5/15 | 10/20 | 15/30 | 20/45 |
| Belt conveyor | 5/5 | 7.5/7.5 | 10/10 | 15/15 |
| Water Pump HP | 1, 0.5 | 1, 1 | 2, 1 | 2, 2 |
| Total HP | 25/32.5 | 30/40 | 40/50 | 50/65 |
Note:- Due to continuous improvement in design, the above specifications are subject to change.
| Product Overview |

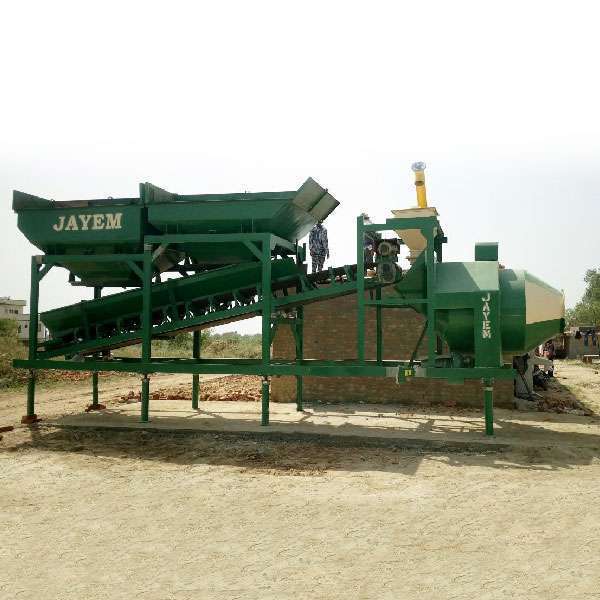

The JH Series Batching Plant stands as a pinnacle of industrial concrete production, engineered to deliver unparalleled precision, structural durability, and high-volume output. Built for the most demanding civil engineering and commercial construction projects, this plant integrates advanced automation with heavy-duty mechanical components. At the core of the JH Series Batching Plant is its state-of-the-art aggregate weighing mechanism, featuring high-precision automated load cells that guarantee the exact material ratios required for high-performance concrete (HPC) and standard mixes alike. The aggregate handling system utilizes strategically configured inline bins and cross bins, enabling seamless and rapid material dispensing. The mixing process is powered by a robust twin-shaft or planetary mixer (depending on configuration), which utilizes high-shear action to ensure a completely homogenous blend. To maintain absolute accuracy in mix designs, the plant employs highly calibrated automated load cells across the cement weighing hopper and the water/admixture dosing units. Controlled by an advanced PLC/SCADA-based automated control panel, operators gain real-time visibility into every phase of the batching cycle. From aggregate feeding to the final discharge, the digital interface allows for rapid adjustments, minimizing material waste and optimizing production cycle times. The JH Series Batching Plant is not just a machine; it is a comprehensive concrete production solution tailored for maximum efficiency and minimum downtime. |
| Technical Features |
|
| Drive Mechanism | Electric / Optional Diesel Gen-Set Compatibility |
| Manufacturing Year | 2024 - Latest Generation |
